Viewport for Isis Chips. More...

#include <ChipViewport.h>

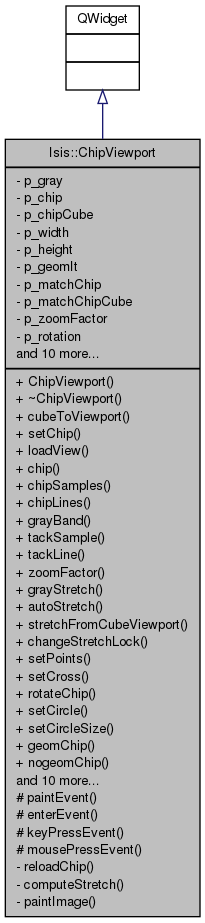

Inheritance diagram for Isis::ChipViewport:

Collaboration diagram for Isis::ChipViewport:

Classes
class	BandInfo

Public Slots
void	autoStretch ()
	Apply automatic stretch using data from entire chip.
void	stretchFromCubeViewport (Stretch , CubeViewport )
void	changeStretchLock (int)
void	setPoints (bool checked)
	Slot to change state of crosshair.
void	setCross (bool checked)
void	rotateChip (int rotation)
	Slot to rotate chip.
void	setCircle (bool checked)
void	setCircleSize (int size)
void	geomChip (Chip matchChip, Cube matchChipCube)
	Slot to geom chip.
void	nogeomChip ()
	Slot to geom chip.
void	panUp ()
	Pan down.
void	panDown ()
	Pan left.
void	panLeft ()
	Pan right.
void	panRight ()
void	zoomIn ()
	Zoom in.
void	zoomOut ()
	Zoom out.
void	zoom1 ()
	Zoom by a factor of one.
void	zoom (double zoomFactor)
void	refreshView (double tackSample, double tackLine)
	If mouse enters, make sure key events are processed w/o clicking.
void	setControlNet (ControlNet *newControlNet)
	sets the ControlNet to be used for drawing measure locations

Signals
void	tackPointChanged (double)
	< Signal sent when tack point changes
void	userMovedTackPoint ()

Public Member Functions
	ChipViewport (int width, int height, QWidget *parent=0)
	Construct an empty viewport.
virtual	~ChipViewport ()
	Destructor.
bool	cubeToViewport (double samp, double line, int &x, int &y)
	get viewport x and y from cube sample and line
void	setChip (Chip chip, Cube chipCube)
	Set chip.
void	loadView (ChipViewport &newView)
	Load with another ChipViewport, used for blinking.
Chip *	chip () const
	Return chip.
int	chipSamples () const
	Return the number of samples in the chip.
int	chipLines () const
	Return the number of lines in the chip.
int	grayBand () const
	Return the gray band currently viewed.
double	tackSample ()
	Return the position of cube under cross hair.
double	tackLine ()
	returns tack Line
double	zoomFactor ()
	Return the zoom factor.
Stretch	grayStretch () const
	Draw X on point.

Protected Member Functions
void	paintEvent (QPaintEvent *e)
	Repaint the viewport.
void	enterEvent (QEvent *e)
	Process arrow keystrokes on cube.
void	keyPressEvent (QKeyEvent *e)
void	mousePressEvent (QMouseEvent *event)
	Process mouse events.

Private Member Functions
void	reloadChip (double tackSample=0., double tackLine=0.)
	Reloads the chip.
void	computeStretch (Stretch &stretch, bool force=false)
	Compute automatic stretch for a portion of the cube.
void	paintImage ()
	Paint QImage.

Private Attributes
BandInfo	p_gray
	info for the gray bands.
Chip *	p_chip
	The chip.
Cube *	p_chipCube
	The chip's cube.
int	p_width
	Chip width.
int	p_height
	Chip height.
bool	p_geomIt
	geomIt?
Chip *	p_matchChip
	The matching chip.
Cube *	p_matchChipCube
	The matching chip's cube.
double	p_zoomFactor
	Zoom Factor.
int	p_rotation
	Rotation.
QImage *	p_image
	The image.
bool	p_paintImage
	Paint Image?
bool	p_showPoints
	Draw control points.
bool	p_cross
	Draw crosshair.
bool	p_circle
	Draw circle.
int	p_circleSize
	Circle size.
ChipViewport *	p_tempView
	Temporary viewport.
ControlNet *	p_controlNet
bool	p_stretchLocked
Stretch *	p_stretch

Detailed Description

Viewport for Isis Chips.

Author: 2007-05-01 Tracie Sucharski

History:: 2008-09-09 Tracie Sucharski - Added setCircle and setCircleSize methods.

History:: 2010-06-16 Jeannie Walldren - Modified geomChip(), nogeomChip(), rotateChip() and reloadChip() to catch possible iExceptions from Chip's Load() method and display Error in QMessageBox

History:: 2010-11-17 Eric Hyer - Added cubeToViewport method and setControlNet slot. paintEvent can now use the control net to paint measures in the viewport.

History:: 2010-11-22 Eric Hyer - ChipViewports can now be stretched by stretching CubeViewports opened to the same cube

History:: 2010-11-24 Eric Hyer - Fixed bug where crosses were painted one screen pixel off on each direction. Also no longer paint cross under the large main red crosses.

History:: 2010-12-01 Eric Hyer - Added stretch locking

History:: 2011-06-07 Debbie A. Cook and Tracie Sucharski - Changed point type "Ground" to "Fixed".

History:: 2011-06-14 Tracie Sucharski - Added mouseClick signal. Qnet needed to know if user moved the tackpoint vs. simply loading a new chip, or geoming the chip.

History:: 2011-06-15 Tracie Sucharski - Changed signal mouseClick to userMovedTackPoint. TODO: Could not use tackPointChanged signal because that signal is emitted whenever the measure is loaded not just when the user initiates the move. This should be cleaned up.

History:: 2011-09-14 Tracie Sucharski - Added user option to determine whether control points are drawn.

History:: 2012-07-26 Tracie Sucharski - Added method to return zoom factor and slot to zoom to a specific zoom factor.

Definition at line 85 of file ChipViewport.h.

Constructor & Destructor Documentation

Isis::ChipViewport::ChipViewport	(	int	width,
		int	height,
		QWidget *	parent = `0`
	)

Construct an empty viewport.

Definition at line 21 of file ChipViewport.cpp.

References p_chip, p_chipCube, p_circle, p_cross, p_geomIt, p_height, p_image, p_matchChip, p_matchChipCube, p_rotation, p_tempView, p_width, and p_zoomFactor.

Isis::ChipViewport::~ChipViewport ( )

virtual

Destructor.

Definition at line 53 of file ChipViewport.cpp.

Member Function Documentation

void Isis::ChipViewport::autoStretch ( )

slot

Apply automatic stretch using data from entire chip.

Definition at line 114 of file ChipViewport.cpp.

References computeStretch(), p_gray, and paintImage().

Referenced by geomChip(), nogeomChip(), reloadChip(), rotateChip(), and setChip().

Chip* Isis::ChipViewport::chip ( ) const

inline

Return chip.

Definition at line 102 of file ChipViewport.h.

References p_chip.

Referenced by setChip().

int Isis::ChipViewport::chipLines ( ) const

inline

Return the number of lines in the chip.

Definition at line 112 of file ChipViewport.h.

References Isis::Chip::Lines(), and p_chip.

int Isis::ChipViewport::chipSamples ( ) const

inline

Return the number of samples in the chip.

Definition at line 107 of file ChipViewport.h.

References p_chip, and Isis::Chip::Samples().

void Isis::ChipViewport::computeStretch	(	Stretch &	stretch,
		bool	force = `false`
	)

private

Compute automatic stretch for a portion of the cube.

Definition at line 160 of file ChipViewport.cpp.

References Isis::Statistics::AddData(), Isis::Stretch::AddPair(), Isis::Statistics::BestMaximum(), Isis::Statistics::BestMinimum(), Isis::Stretch::ClearPairs(), Isis::Chip::GetValue(), Isis::Chip::Lines(), p_chip, and Isis::Chip::Samples().

Referenced by autoStretch().

bool Isis::ChipViewport::cubeToViewport	(	double	samp,
		double	line,
		int &	x,
		int &	y
	)

get viewport x and y from cube sample and line

Parameters

samp	Sample in cube
line	Line in cube
x	calcualated viewport x coordinate
y	calcualated viewport y coordinate

Returns: True if the point is contained in the viewport, false otherwise

Definition at line 71 of file ChipViewport.cpp.

References Isis::Chip::ChipLine(), Isis::Chip::ChipSample(), Isis::Chip::IsInsideChip(), p_chip, and Isis::Chip::SetCubePosition().

Referenced by paintEvent().

void Isis::ChipViewport::enterEvent ( QEvent * e )

protected

Process arrow keystrokes on cube.

Definition at line 426 of file ChipViewport.cpp.

void Isis::ChipViewport::geomChip	(	Chip *	matchChip,
		Cube *	matchChipCube
	)

slot

Slot to geom chip.

History:: 2010-06-16 Jeannie Walldren - Catch possible iException from Chip's Load() method and display in QMessageBox

Definition at line 535 of file ChipViewport.cpp.

References autoStretch(), Isis::Chip::Load(), p_chip, p_chipCube, p_geomIt, p_matchChip, p_matchChipCube, and Isis::IException::toString().

Referenced by Isis::ControlPointEdit::setGeom(), and Isis::ControlPointEdit::updateRightGeom().

int Isis::ChipViewport::grayBand ( ) const

inline

Return the gray band currently viewed.

Definition at line 117 of file ChipViewport.h.

References p_gray.

Stretch Isis::ChipViewport::grayStretch ( ) const

inline

Draw X on point.

Return the gray band stretch

Definition at line 133 of file ChipViewport.h.

References p_gray.

void Isis::ChipViewport::loadView ( ChipViewport & newView )

Load with another ChipViewport, used for blinking.

Load with info from given ChipViewport.

Definition at line 297 of file ChipViewport.cpp.

References p_tempView.

Referenced by Isis::ControlPointEdit::updateBlink().

void Isis::ChipViewport::mousePressEvent ( QMouseEvent * event )

protected

Process mouse events.

History:: 2011-09-29 Tracie Sucharski - Added the setFocus call so that arrow keys would work.

Slot to set whether control points are drawn

Definition at line 469 of file ChipViewport.cpp.

References Isis::Chip::CubeLine(), Isis::Chip::CubeSample(), p_chip, reloadChip(), and Isis::Chip::SetChipPosition().

void Isis::ChipViewport::nogeomChip ( )

slot

Slot to geom chip.

History:: 2010-06-16 Jeannie Walldren - Catch possible iException from Chip's Load() method and display in QMessageBox

Definition at line 561 of file ChipViewport.cpp.

References autoStretch(), Isis::Chip::Load(), p_chip, p_chipCube, p_geomIt, p_rotation, p_zoomFactor, and Isis::IException::toString().

Referenced by Isis::ControlPointEdit::setNoGeom(), and Isis::ControlPointEdit::setRotate().

void Isis::ChipViewport::paintEvent ( QPaintEvent * e )

protected

Repaint the viewport.

History:: 2011-08-23 Tracie Sucharski - Use the GetMeasuresInCube method from ControlNet to get list of measures rather than searching through entire net.
